What Is Tracking Force? VTF Explained

The Physics of Stylus-in-Groove

Inside every cartridge body, the stylus cantilever is suspended by a compliant rubber damper. That suspension is the pivot point around which the diamond tip moves in response to groove modulations. VTF compresses the suspension a specific amount, pre-loading it so the stylus maintains continuous contact with both groove walls through every modulation the record throws at it.

Groove walls can move laterally and vertically at surprisingly high velocities, especially during loud passages — orchestral crescendos, percussive transients, hot-cut vocals. Engineers at Shure and Ortofon have long described the stylus-groove interface as a dynamic system: the stylus must follow every wiggle of the groove without losing contact (mistracking) and without pressing so hard that it deforms the vinyl it's trying to read. VTF is what keeps that system in its narrow operating window.

The Manufacturer's Specified Range

Cartridge manufacturers publish a tracking force range — for example, Ortofon's 2M Red specifies 1.6–2.0g with a recommended value of 1.8g, which sits at the midpoint. The range exists because tonearms vary in effective mass, stylus compliance varies between samples, and the resonant behaviour of any given arm/cartridge pairing shifts the sweet spot slightly. Staying within the published range matters far more than fixating on the exact midpoint.

Reviewers and setup guides at Stereophile and Vinyl Engine consistently recommend treating the manufacturer's range as a hard boundary and the recommended value as a reasonable starting point. From there, small adjustments within the range are fair game.

Skating, Mistracking, and Distortion

Below the recommended range, the stylus simply lacks the downward force to stay planted against violent groove modulations. The result is mistracking, and it has a distinctive sonic signature: distortion that flares up on loud passages, sibilance that turns vocals into hissing lisps, and a brittle harshness that listeners often blame on "bad pressings" when the real culprit is setup. In severe cases the stylus skips outright, jumping a groove.

Shure's technical literature from the late 1970s documented mistracking extensively, showing that as VTF drops below spec, the stylus begins to lose contact during high-velocity groove excursions — first intermittently, then catastrophically. That research still defines how cartridge engineers describe the failure mode today.

Groove and Stylus Wear

Above the recommended range, the stylus presses harder than the suspension was engineered to accommodate. Two things happen in parallel. The diamond tip wears faster against the groove walls, because friction scales with normal force. And the vinyl itself can plastically deform under repeated high-pressure passes, especially on inner grooves where linear velocity is lowest and the stylus dwells longer on each modulation.

The sonic tell for over-weighted VTF is a dull, compressed presentation — the suspension is over-damped, transients soften, and the top end loses air. It's less dramatic than mistracking distortion but more destructive over time.

The Counterweight Method

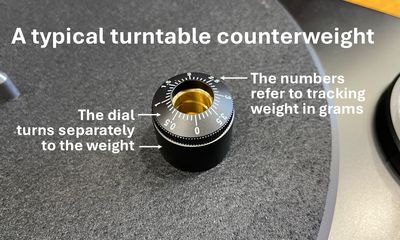

Most tonearms have a counterweight at the rear of the arm with a calibrated dial. The standard procedure: balance the arm so it floats level with the platter — zero gravity, stylus neither rising nor falling — then rotate the counterweight dial forward by the recommended VTF value without moving the counterweight itself. The numbered ring advances independently, and the new reading represents the downward force applied at the stylus.

This method relies entirely on the accuracy of the printed scale. For most mass-market tonearms, community measurements collected on Vinyl Engine suggest the dial is accurate to within ±0.1–0.2g — adequate for a first pass, less than ideal if the cartridge has a narrow recommended window.

Using a Stylus Force Gauge

A digital stylus force gauge runs $15–$40 and measures actual VTF in grams, usually to 0.01g resolution. Place the gauge on the platter at roughly record height, lower the stylus onto the measurement pad, and read the display. This bypasses every source of error in the counterweight scale — bearing friction, uneven dial printing, a slightly off-level plinth — and gives a number that reflects what the stylus is actually doing.

Setup guides from Michael Fremer at Stereophile and the technical pages at Ortofon both recommend a gauge over the counterweight scale whenever the cartridge's recommended range is tight (say, ±0.1g) or when the listener wants to audition different VTF settings within the range.

Anti-Skate and VTF: The Connection

Anti-skate force counteracts the inward pull a pivoted tonearm experiences as the stylus drags across the record. It's typically set to match or approximate VTF — if VTF is 1.8g, anti-skate is set to 1.8 on the dial — but the two forces are not the same thing. VTF determines contact pressure on the groove; anti-skate cancels a lateral bias that would otherwise push the stylus against the inner groove wall.

The order matters. Set VTF first to the correct value, then adjust anti-skate to match. Changing VTF later means revisiting anti-skate, because the friction that anti-skate compensates for scales with downward force.

"Heavier tracking force equals better bass"

False. Within the manufacturer's range, VTF does not add bass — it ensures the stylus stays in the groove so the bass that's already cut into the record gets read correctly. Above the range, the extra weight dulls the sound rather than reinforcing the low end. The myth likely comes from listeners hearing a mistracking cartridge (too light) improve when VTF is raised into spec, and assuming more weight would mean more improvement. It doesn't.

"Light tracking force protects records"

Only within the recommended range. Below the range, mistracking causes more groove damage than correct-force tracking, not less, because a stylus that's losing contact drags unpredictably across the groove wall and gouges rather than traces. Shure's wear studies and subsequent work cited by the Audio Engineering Society consistently show that under-weighted tracking is one of the worst things a listener can do to a record.

"The counterweight scale is accurate enough"

Close enough for initial setup and for cartridges with a wide recommended range, but a $20 gauge is worth the money — particularly on cartridges with tight compliance specifications or narrow published VTF windows. The community consensus on Vinyl Engine and in Stereophile setup articles is that once a listener owns a gauge, they rarely go back to trusting the dial.

Should I always set VTF to the middle of the recommended range?

Not necessarily. Many cartridge makers — including Ortofon in their technical background notes — recommend tracking slightly higher within the range for better tracking on difficult passages, because a touch more downward force improves stylus control during high-velocity modulations. Audiophile community consensus on forums like Vinyl Engine often favours the upper third of the range for daily listening. The midpoint is a safe default; the upper third is a reasonable experiment.

Does tracking force affect sound quality?

Yes, noticeably. Mistracking caused by too-light VTF is one of the most commonly cited sources of harshness on vinyl playback — reviewers routinely identify it as the first thing to check when a system sounds edgy or sibilant. Correct VTF is often described by setup specialists as the single most impactful tweak on a turntable, outweighing cable changes, platter mats, and most other accessories.

Can wrong VTF damage my records?

Yes, in both directions. Sustained mistracking from too-light VTF damages groove walls over time because the stylus drags unpredictably rather than tracing cleanly. Too-heavy VTF causes a different wear pattern — the diamond tip grinds rather than glides, and the groove can deform plastically under repeated passes. Both modes are destructive. Staying within the manufacturer's recommended range is the protective choice.
